Hot Plate Stirrers and Stirrers, Analog and Digital, Ceramic Glass and Ceramic Coated Stainless Steel, Round and Square Tops

Overview

A wide selection of analog and digital, ceramic glass and ceramic coated stainless steel platforms, round and square top, magnetic stirrers, hot plate stirrers and hot plates. They are manufactured to a very high standard and competitive with other brands of products with similar features, but more attractively priced.

The MS-H-S hot plate stirrers, and the MS7-S and MS-S stirrers, are analog controlled units in which speed and temperature are controlled by one or two analog dials. They have electronic speed control and maintain constant speed in the face of changes in load. The MS-H-S and MS-S have circular plates (diameter 5.3 inches) available in ceramic covered stainless steel, while the MS7-S features a 7 inch square ceramic glass plate.

The MS7-H550-Pro, MS7-H550-S, MS-H-Pro-Plus and the MS-H-Pro-T hot plate stirrers, and the MS7-Pro and MS-Pro stirrers, are digitally controlled units with more features. They have easy to read displays that clearly show the parameters, and an external Pt1000 sensor for medium temperature control can be fitted. The digital hot plate stirrers and stirrers have a memory facility for storing parameters and for saving heating and stirring functions, making it easy to replicate reaction conditions. The MS-H-Pro-T has a timing feature to control heat.

The digital operation of the hot plate stirrers also allows data to be controlled and logged by connection to an external PC with free software. Kits are available that include the necessary probe and holders..

All models are certified in accordance with US and Canadian Electrical Standards.

Features of the Hot Plates, Stirrers and Hotplate Stirrers:

LCD models have bright easy to read backlit displays and feature RS232 connectivity, for remote PC control and logging
Analog stirrers or hot plate stirrers use one or two dials to set speed or temperature
LED display hot plates or hot plate stirrers have one or two knobs to control real time temperature or speed
MS-H-Pro-T heater stirrer has built in timer for heater control
Stirrer speeds to 1500 rpm
Rectangular top 7”×7” heaters can reach temperatures to 550°C
Electronic speed control maintains speed under changing loads
Long life maintenance free brushless DC motors
2 year warranty
An economical solution for a wide variety of typical laboratory tasks

Specifications (Click here):

Hot Plate Stirrers and Stirrers, Analog and Digital, Ceramic Glass and Ceramic Coated Stainless Steel, Round and Square Tops

Specifications

Model:	MS-H-S Hot Plate Stirrer	MS7-H550-Pro Hot Plate Stirrer	MS7-H550-S Hot Plate Stirrer	MS-H-Pro-Plus Hot Plate Stirrer	MS-H-Pro-T Hot Plate Stirrer	MS7- S Stirrer	MS-S Stirrer	MS7-Pro Stirrer	HP550-S Hot Plate
Function:	Hot Plate Stirrer	Hot Plate Stirrer	Hot Plate Stirrer	Hot Plate Stirrer	Hot Plate Stirrer	Stirrer	Stirrer	Stirrer	Hot Plate
Control interface:	Analog	Digital	Digital	Digital	Digital	Analog	Analog	Digital	Digital
Heating rate, 1L H₂0: (K/min)	6	6	6	6	6	-	-	-	6
Maximum Stirring quantity: (Liters of H₂O)	20	20	10	20	20	20	20	20	-
Speed range: (rpm)	0-1500	0-1500	0-1500	0-1500	0-1500	0-1500	0-1500	0-1500	-
Maximum bar length: (mm L, mm Ø)	80, 10	80, 10	80, 10	80	80, 10	80	80, 10	80	-
Maximum heat output: (W)	500	1000	1000	500	500	-	-	-	1000
Temperature range: (°C)	Ambient to 340	Ambient to 550	Ambient to 550	Ambient to 340	Ambient to 340	-	-	-	Ambient to 550
Plate:	Ceramic coated stainless steel	Ceramic Glass	Ceramic Glass	Ceramic coated stainless steel	Ceramic coated stainless steel	Ceramic Glass	Ceramic coated stainless steel	Ceramic Glass	Ceramic Glass
Suitable for external temperature sensor:	No	Yes	Yes	Yes	Yes	-	-	-	Yes
Temperature display accuracy: (°C)	-	± 0.1	± 0.1	± 0.1	± 0.1	-	-	-	-
Temperature accuracy at plate: (°C)	-	± 0.1	-	-	-	-	-	-	± 10
Timer function to control heat: (h:min)	-	-	-	-	-	-	-	-	-
Temperature control accuracy with PT1000: (°C)	- Ø	± 0.2	± 0.5	± 0.2	± 0.2	-	-	-	± 1
Display:	Analog	Backlit LCD	LED heat, Analog speed	Backlit LCD	Backlit LCD	Analog	Analog	Backlit LCD	LCD
Plate size: (mm)	135 Ø	178 × 178	178 × 178	135 Ø	135 Ø	178 × 178	135 Ø	178 × 178	178 × 178
Unit weight: (kg)	2.7	5	5	2.7	2.7	5	2.3	5	5
Permissable ambient temperature: (°C)	5 to 40	5 to 40	5 to 40	5 to 40	5 to 40	5 to 40	5 to 40	5 to 40	-
Permissible relative humidity: (%)	≤ 80	≤ 80	≤ 80	≤ 80	≤ 80	≤ 80	≤ 80	≤ 80	-
Dimensions: W×D×H (mm)	159×280×76	216×356×114	216×356×114	159×280×76	159×280×76	216×356×114	159×280×76	216×356×114	216×356×114
RS232:	-	Yes	-	Yes	Yes	-	-	Yes	-
Power (others available upon request): (V/Hz)	110/60	110/60	110/60	110/60	110/60	110/60	110/60	110/60	110/60
Certification:	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL	CSA, UL
Certification:	2	2	2	2	2	2	2	2	2

Number	Description	Price $

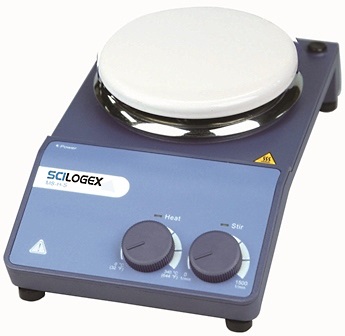

81112102	MS-H-S Circular Top Analog Hot Plate Magnetic Stirrer, with ceramic coated steel plate, diameter 5.3 inches, not for use with external temperature sensor, maximum operating temperature 340°C	436.80

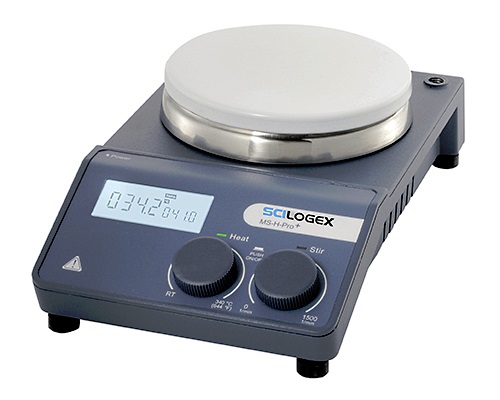

86144201	MS-H-Pro-Plus Circular Top Digital Hot Plate Magnetic Stirrer, with ceramic coated steel plate, diameter 5.3 inches, backlit LCD display, electronic control maintains speed with changes in load, can store functions in memory, maximum operating temperature 340ºC	691.60

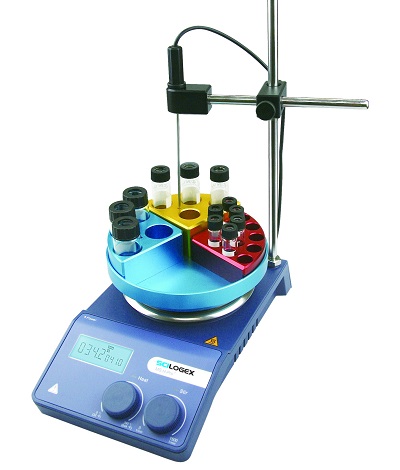

86144201-KIT	MS-H-Pro-Plus Circular Top Digital Hot Plate Magnetic Stirrer Kit, with ceramic coated steel plate, diameter 5.3 inches, backlit LCD display, electronic control maintains speed with changes in load, can store functions in memory, suitable for use with optional Pt Sensor, maximum operating temperature 340ºC, kit supplied complete with hot plate stirrer, stainless steel temperature probe, holder and support rod (pie blocks and carrier not included)	893.98

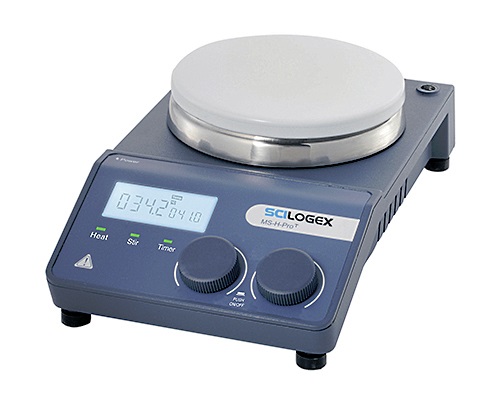

86149201	MS-H-Pro-T Circular Top Digital Hot Plate Magnetic Stirrer, same as #86144201 MS-H-Pro, with the addition of a Heat Timer function	764.40

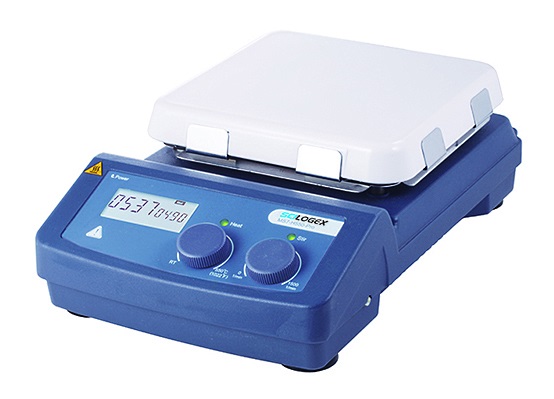

81322300	MS7-H550-Pro LCD Square Top Digital Magnetic Hot Plate Stirrer, with Ceramic-Glass Plate, 7 × 7 inches, backlit LCD display, electronic control maintains speed with changes in load, RS232 port for remote control, maximum operating temperature 650ºC	891.80

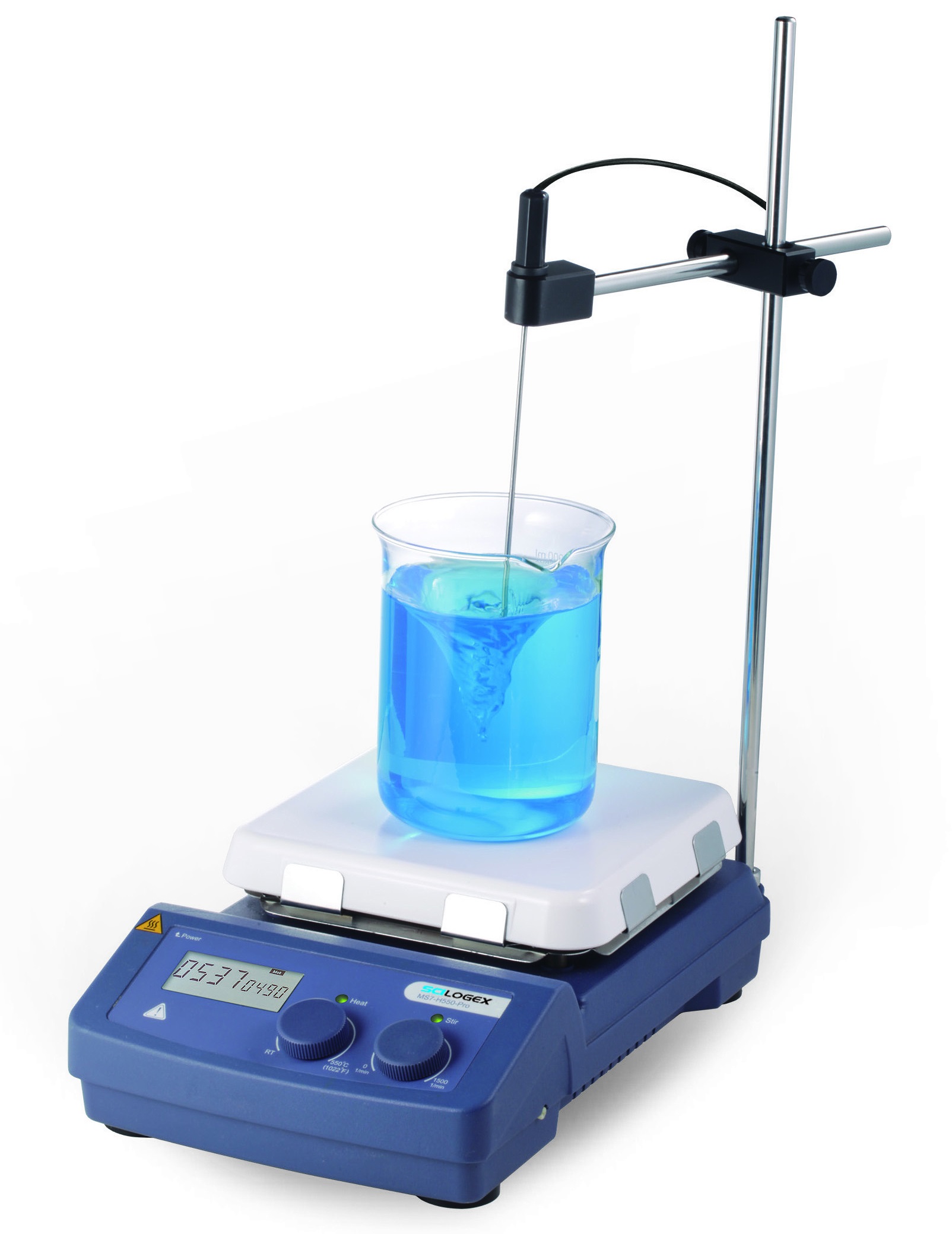

81322300-KIT	MS7-H550-Pro LCD Square Top Digital Magnetic Hot Plate Stirrer Kit, with Ceramic-Glass Plate, 7 × 7 inches, backlit LCD display, electronic control maintains speed with changes in load, RS232 port for remote control, maximum operating temperature 650ºC, kit supplied complete with hot plate stirrer, stainless steel temperature probe, holder and support rod
81322100	MS7-H550-Pro LED Square Top Digital Magnetic Hot Plate Stirrer, with Ceramic-Glass Plate, 7 × 7 inches, LED display for heat, analog display of stirring, maximum operating temperature 650ºC	709.80
81322100-KIT	MS7-H550-Pro LED Square Top Digital Magnetic Hot Plate Stirrer Kit, with Ceramic-Glass Plate, 7 × 7 inches, LED display for heat, analog display of stirring, maximum operating temperature 650ºC, kit supplied complete with hot plate stirrer, stainless steel temperature probe, holder and support rod	846.30

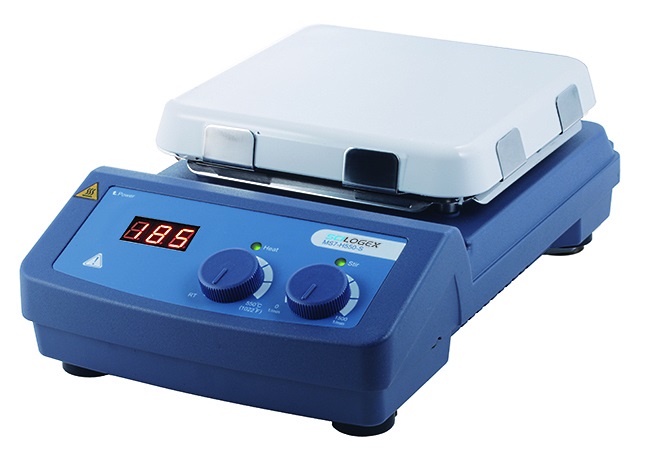

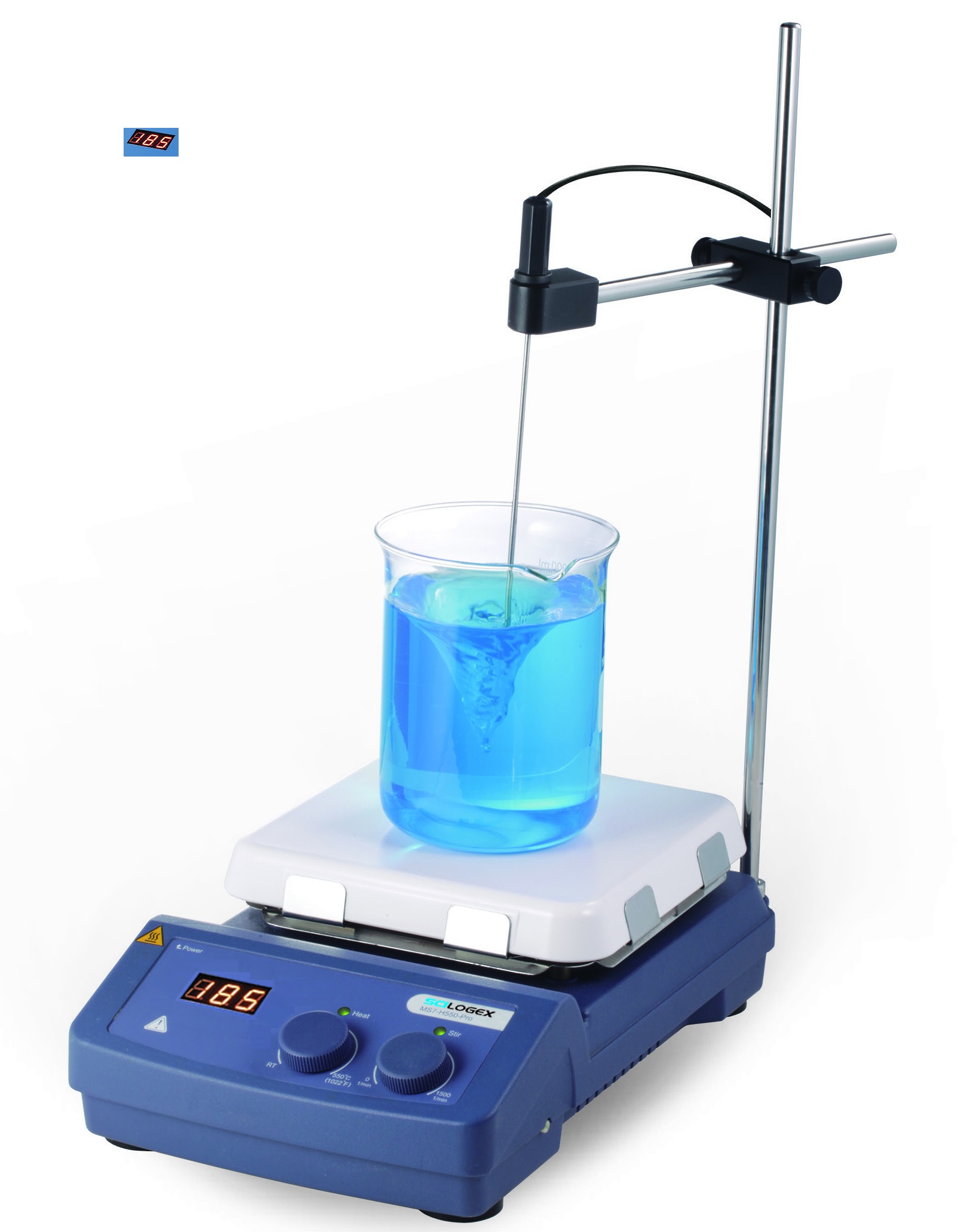

81322200	MS7-H550-S LED Digital Magnetic Hot Plate Stirrer, with Ceramic-Glass Plate, 7 × 7 inches. LED display, can use with temperature probe, maximum operating temperature. 550⁰C	709.80
81322200-KIT	MS7-H550-S LED Digital Magnetic Hot Plate Stirrer Kit, with Ceramic-Glass Plate, 7 × 7 inches. LED display, supplied complete with hot plate Stirrer, stainless steel temperature probe, holder and support rod	912.18

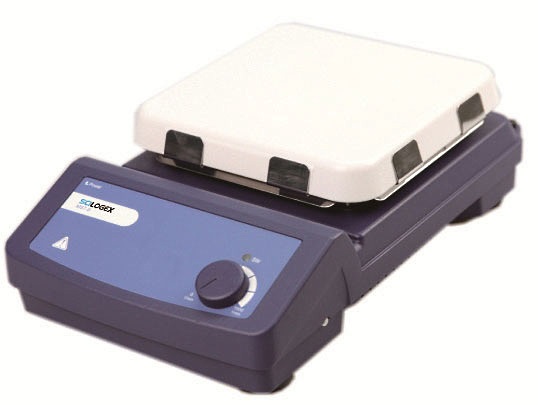

81321100	MS7-S Analog Magnetic Stirrer, with Ceramic-Glass Plate, 7 × 7 inches	637.00

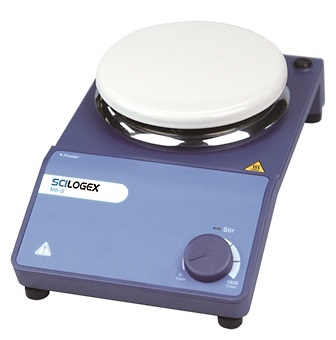

81111112	MS-S Circular Top Analog Magnetic Stirrer, with ceramic coated steel plate, diameter 5.3 inches	414.96

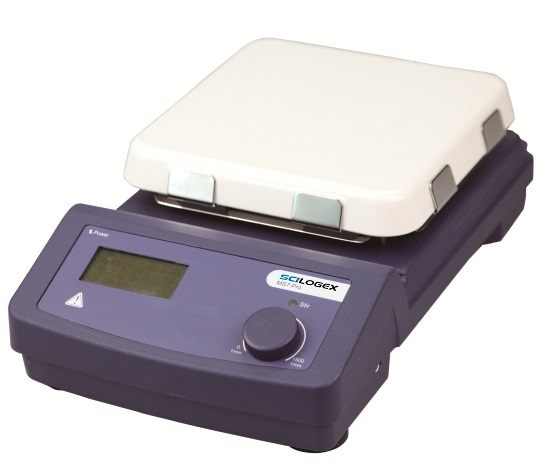

81321300	MS7-Pro LCD Digital Magnetic Stirrer, with Ceramic-Glass Plate, 7 × 7 inches	415.58

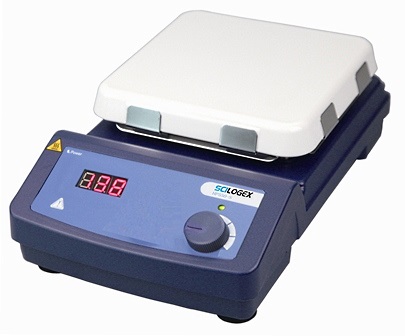

51212101	HP550-S Hotplate, with Ceramic Glass Surface, 7” x 7” and LED Display, compatible with external temperature sensor, maximum operating temperature 550°C	637.00
18900016	Pt1000 Sensor, Stainless Steel	123.76
189000136	Pt1000 Sensor, Glass protective sleeve for use with corrosive chemicals	152.88
18900017	Pt1000 Sensor Support Stand and Clamp	56.78
D-101100	Magnetic stirring bar, PTFE coated, round, no pivot ring, 10mm L x 3mm Ø	7.25
D-101150	Magnetic stirring bar, PTFE coated, round, no pivot ring, 13mm L x 3mm Ø	7.70
D-101200	Magnetic stirring bar, PTFE coated, round, no pivot ring, 19mm L x 3mm Ø	7.70
D-101250	Magnetic stirring bar, PTFE coated, round, with pivot ring, 25mm L x 7.9mm Ø	7.57
D-101300	Magnetic stirring bar, PTFE coated, round, with pivot ring, 32mm L x 7.9mm Ø	10.04
D-101400	Magnetic stirring bar, PTFE coated, round, with pivot ring, 38mm L x 9.5mm Ø	13.47
D-101500	Magnetic stirring bar, PTFE coated, round, with pivot ring, 51mm L x 9.5mm Ø	16.77
D-101650	Magnetic stirring bar, PTFE coated, round, with pivot ring, 75mm L x 12mm Ø	19.48
D-110000	Magnetic stirring bar retriever, PTFE coated, 25mm L × 7mm Ø	22.39
D-110001	Support Rod	19.50

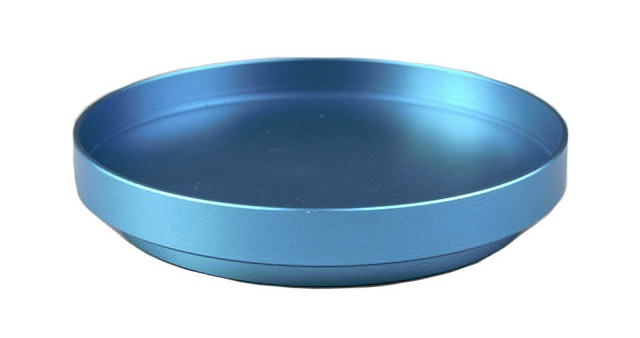

18900001	Carrying plate for quarter pie reaction blocks	104.83
18900065	Containment ring to secure quarter pie reaction blocks in hotplate	104.83
18900002	Red quarter pie reaction block, 11 holes 4 mL reaction vessel, 15.2 mm Ø × 20 mm depth	73.63
18900003	Purple quarter pie reaction block, 4 holes 20 mL reaction vessel, 28 mm Ø × 24 mm depth	59.90
18900004	Blue quarter pie reaction block, 4 holes 30 mL reaction vessel, 28 mm Ø × 30 mm depth	64.90
18900005	Black quarter pie reaction block, 4 holes 16mL reaction vessel, 28 mm Ø × 43 mm depth	71.14
18900048	Green quarter pie reaction block, 6 holes 8mL reaction vessel, 17.75 mm Ø × 26 mm depth	71.14
18900049	Gold quarter pie reaction block, 4 holes 16mL reaction vessel, 21.6 mm Ø × 31.7 mm depth	66.14

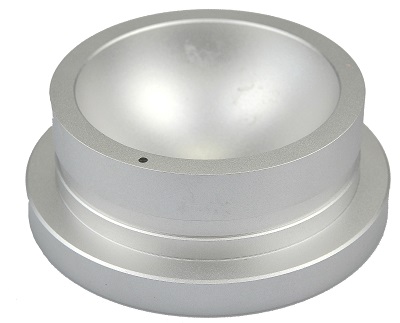

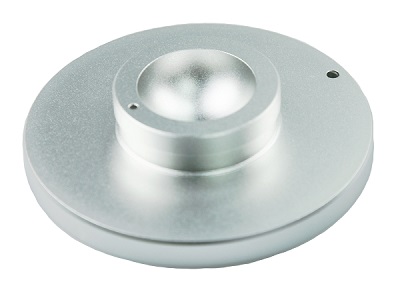

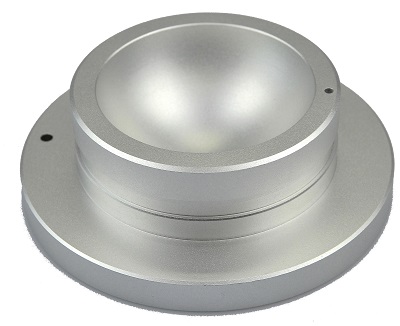

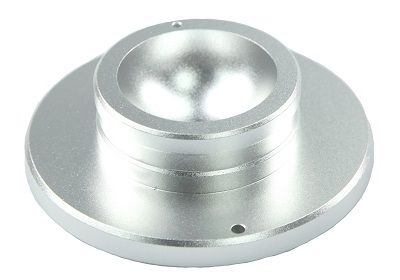

18101006	Reaction block for 50 mL round bottom flasks (4 flasks maximum capacity)	122.30
18101007	Reaction block for 100 mL round bottom flask (2 flasks maximum capacity)	122.59
18101008	Reaction block for 250 mL round bottom flask (1 flask maximum capacity)	139.78
18101009	Reaction block for 500 mL round bottom flask (1 flask maximum capacity)	147.26
