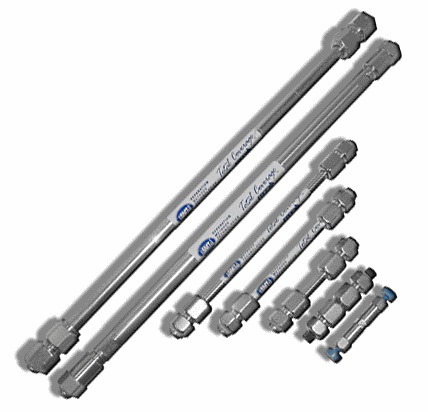

Columns, SMT UHPLC Ultra High Pressure Liquid Chromatography

Overview

SMT SAM-UHPLC^® columns are the most technologically advanced LC columns ever created, combining faster separations with higher resolution by harnessing the full potential of small particles. Designed, tested, and guaranteed for use in applications up to 15000 psi (1000 bar), these columns offer unsurpassed efficiency, ruggedness and throughput.

UHPLC provides tremendous savings in analytical time, solvent consumption and cost of disposal of used solvents in analytical method development.

SMT UHPLC columns are available in various bonded-phases such as C18, C8, MEB, CN, NH2, Phenyl and Diol, and in more than 100 combinations of configurations, column dimensions, chemistries and offerings in 1.5 μm and 1.8 μm UPLC particles.

Contact Rose Scientific for MEB, CN, NH2, Phenyl, Diol and Guard columns and other sizes that are available.

Features of SMT UHPLC Columns:

Faster separations with higher resolution
Save analytical time
Save solvent
Lower cost of used solvent disposal
SAM™ Total Coverage Technology

A comparison of SMT UHPLC and Agilent Zorbax Eclipse Plus, Separation of Peptides:

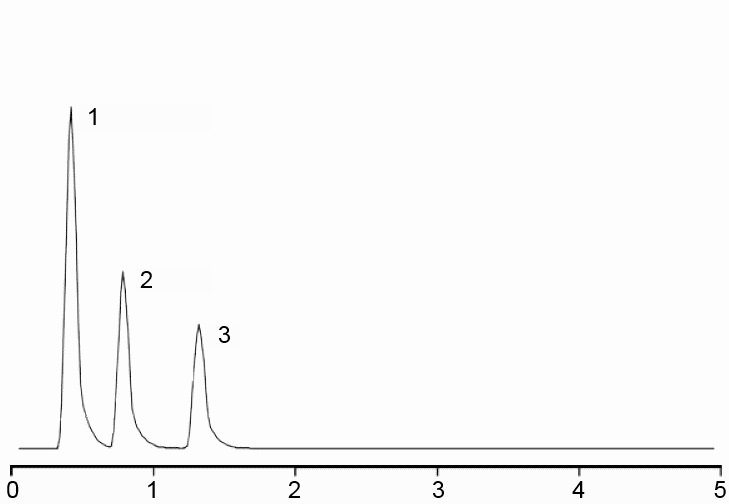

UHPLC Separation of Peptides: OD-1.8-100-52
Column:	OD-1.8-100-52
Solutes:	1 = TYR_GLY 2 = GLY_GLY_PHE 3 = GLY_LEU_TYR
Eluent:	ACN: Water 70:30 (v:v)
Flow:	1.0 mL/min
Detector:	UV; 254nm
Temp:	30° C
Remarks:	Chromatographic data donated from Dr. Derrick Swinton, Department of Chemistry, Lincoln University, PA

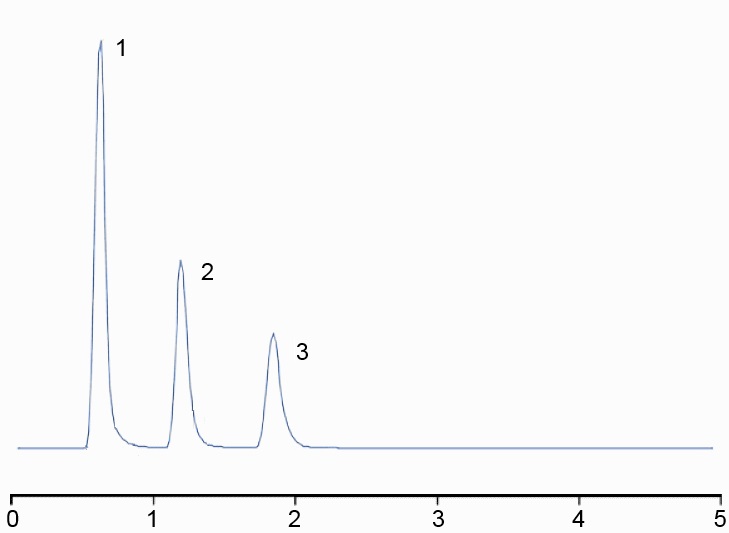

UHPLC Separation of Peptides: Agilent Zorbax Eclipse Plus C18 2.1x50mm 1.8μm
Column:	Agilent Zorbax Eclipse Plus C18 2.1x50mm 1.8μm
Solutes:	1 = TYR_GLY 2 = GLY_GLY_PHE 3 = GLY_LEU_TYR
Eluent:	ACN: Water 70:30 (v:v)
Flow:	1.0 mL/min
Detector:	UV; 254nm
Temp:	30° C
Remarks:	Chromatographic data donated from Dr. Derrick Swinton, Department of Chemistry, Lincoln University, PA

Number	Description	Price $
OD-1.5-100-2	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 20 mm L x 4.6 mm I.D	843.70
OD-1.5-100-3	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 30 mm L x 4.6 mm I.D	908.70
OD-1.5-100-5	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 50 mm L x 4.6 mm I.D	973.70
OD-1.5-100-7.5	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 75 mm L x 4.6 mm I.D	1,012.70
OD-1.5-100-100	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 100 mm L x 4.6 mm I.D	1,103.70
OD-1.5-100-22	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 20 mm L x 2.1 mm I.D	778.70
OD-1.5-100-32	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 30 mm L x 2.1 mm I.D	973.70
OD-1.5-100-52	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 50 mm L x 2.1 mm I.D	908.70
OD-1.5-100-7.52	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 75 mm L x 2.1 mm I.D	947.70
OD-1.5-100-102	SMT SAM-UHPLC C18 Column, 1.5 µm, 100Å, 100 mm L x 2.1 mm I.D	1,038.70
OD-1.8-100-2	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 20 mm L x 4.6 mm I.D	973.70
OD-1.8-100-3	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 30 mm L x 4.6 mm I.D	908.70
OD-1.8-100-5	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 50 mm L x 4.6 mm I.D	973.70
OD-1.8-100-7.5	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 75 mm L x 4.6 mm I.D	1,012.70
OD-1.8-100-100	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 100 mm L x 4.6 mm I.D	1,103.70
OD-1.8-100-22	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 20 mm L x 2.1 mm I.D	778.70
OD-1.8-100-32	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 30 mm L x 2.1 mm I.D	843.70
OD-1.8-100-52	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 50 mm L x 2.1 mm I.D	908.70
OD-1.8-100-7.52	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 75 mm L x 2.1 mm I.D	947.70
1.8-100-102	SMT SAM-UHPLC C18 Column, 1.8 µm, 100Å, 100 mm L x 2.1 mm I.D	1,038.70
O-1.5-100-2	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 20 mm L x 4.6 mm I.D	843.70
O-1.5-100-3	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 30 mm L x 4.6 mm I.D	908.70
O-1.5-100-5	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 50 mm L x 4.6 mm I.D	973.70
O-1.5-100-7.5	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 75 mm L x 4.6 mm I.D	1,012.70
O-1.5-100-100	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 100 mm L x 4.6 mm I.D	1,103.70
O-1.5-100-22	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 20 mm L x 2.1 mm I.D	778.70
O-1.5-100-32	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 30 mm L x 2.1 mm I.D	843.70
O-1.5-100-52	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 50 mm L x 2.1 mm I.D	908.70
O-1.5-100-7.52	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 75 mm L x 2.1 mm I.D	947.70
O-1.5-100-102	SMT SAM-UHPLC C8 Column, 1.5 µm, 100Å, 100 mm L x 2.1 mm I.D	1,038.70
O-1.8-100-2	SMT SAM-UHPLC C8 Column, 1.8 µm, 100Å, 20 mm L x 4.6 mm I.D	843.70
O-1.8-100-3	SMT SAM-UHPLC C8 Column, 1.8 µm, 100Å, 30 mm L x 4.6 mm I.D	908.70
O-1.8-100-5	SMT SAM-UHPLC C8 Column, 1.8 µm, 100Å, 50 mm L x 4.6 mm I.D	973.70
O-1.8-100-7.5	SMT SAM-UHPLC C8 Column, 1.8 µm, 100Å, 75 mm L x 4.6 mm I.D	1,012.70
O-1.8-100-100	SMT SAM-UHPLC C8 Column, 1.8 µm, 100Å, 100 mm L x 4.6 mm I.D	1,103.70
O-1.8-100-22	SMT SAM-UHPLC C8 Column, 1.8 µm, 100Å, 20 mm L x 2.1 mm I.D	778.70
O-1.8-100-32	SMT SAM-UHPLC C8 Column, 1.8 µm, 100Å, 30 mm L x 2.1 mm I.D	843.70
O-1.8-100-52	SMT SAM-UHPLC C8 Column, 1.8 µm, 100Å, 50 mm L x 2.1 mm I.D	908.70
O-1.8-100-7.52	SMT SAM-UHPLC C8 Column, 1.8 µm, 100Å, 75 mm L x 2.1 mm I.D	947.70
O-1.8-100-102	SAM-UHPLC C8 Column, 1.8 µm, 100Å, 100 mm L x 2.1 mm I.D	1,038.70
