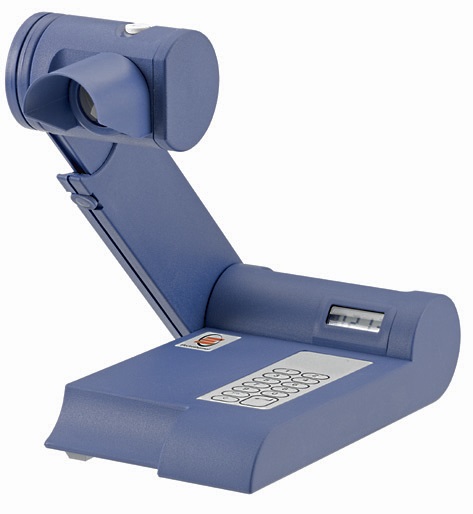

Melting Point Apparatus, IA9000 Series Digitally Controlled Fixed and Programmable Ramp Models
Overview
The updated and improved IA9000 series Digital Melting Point Apparatus offers an easy way to measure the melting points of samples without sacrificing accuracy; the temperature resolution is within 0.1°C. It is ideal for multiple users, being ergonomically designed to insure comfortable viewing for everyone, with a height-adjustable extension arm and a viewing head that may be rotated to suit each user. As a visual aid, the viewing head holds a viewing magnifier that offers 8X magnification. The melting point apparatus has a membrane keypad with easy-to-use menus.
As a further convenience, the extension arm is completely collapsible and can be neatly folded away into the unit, so that the unit can be stored flat to save space. The IA9200 and IA9300 melting point apparatus models have programmable ramp rates, offer the option of storing 500 to 1000 melting point determinations and can be connected to a printer for documentation.
Each IA9000 series model comes supplied with a pack of 50 capillary tubes. Quantity discounts are available for 6 or more units in any one order.
Features of the Series IA9000 Melting Point Apparatus:
Digital microprocessor with ± 0.1°C resolution provides fast warm-up and accurate temperature control
Samples in 3 capillary tubes may be viewed simultaneously
Integral light and wide angle 8X viewing magnifier enhance sample observation, so that all 3 samples can be viewed without eye strain
Adjustable object lens for sharp focus
Specifications (Click here):
Melting Point Apparatus, IA9000 Series Digitally Controlled Fixed and Programmable Ramp Models
Specifications
Model:
IA9100
IA9200
IA9300
Maximum OD of capillary tubes: (mm)
2
2
2
Maximum number of capillary tubes:
3
3
3
Lens diameter: (mm)
40
40
40
Magnification: (×)
8
8
8
Microprocessor: (bits)
32
32
32
Oven temperature, ambient to: (ºC)
400
400
400
Temperature resolution: (°C)
± 0.1
± 0.1
± 0.1
Accuracy : (%)
± 1
± 1
± 1
Choice of ramp rates: (°C/minute)
1.0 and 10
0.2 and 10
0.1 and 10
Nicad battery for memory and clock backup:
-
Yes
Yes
Date and time:
-
Yes
Yes
PC, printer, USB, Serial RS232C port:
-
Yes
Yes
Melt memory capacity:
4 × 1
4 × 1
3 × 2
Batch melt memory capacity:
-
500
1000
Dimensions: W×D×H (mm)
355×200×80
355×200×80
355×200×80
Power: (V/Hz)
115/50-60, 230/50-60 available
115/50-60, 230/50-60 available
115/50-60, 230/50-60 available
Number
Description
Price $
IA9100X1
Fixed Ramp Rate IA9100 Digital Melting Point Apparatus, 115V, includes pack of 50 capillary tubes, power supply and power cable
2,142.00
IA9100
Fixed Ramp Rate IA9100 Digital Melting Point Apparatus, 220V, includes pack of 50 capillary tubes, power supply and power cable
2,142.00
IA9200X1
Programmable Ramp Rate IA9200 Digital Melting Point Apparatus, 115V, includes pack of 50 capillary tubes, power supply and power cable
5,675.25
IA9200
Programmable Ramp Rate IA9200 Digital Melting Point Apparatus, 220V, includes pack of 50 capillary tubes, power supply and power cable
5,675.25
IA9300X1
Programmable Ramp Rate IA9300 Digital Melting Point Apparatus with Beginning and Ending Recording, 115V, includes pack of 50 capillary tubes, power supply and power cable, for pharmaceutical applications
6,069.00
IA9300
Programmable Ramp Rate IA9300 Digital Melting Point Apparatus, with Beginning and Ending Recording, 220V, includes pack of 50 capillary tubes, power supply and power cable, for pharmaceutical applications
