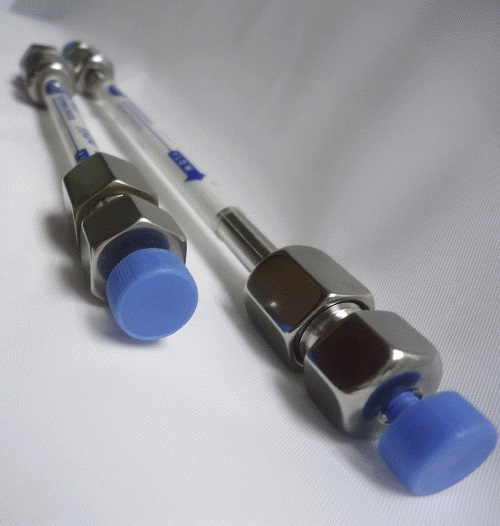

Columns, SMT ODL Series SAM C18 HPLC

  Overview

SMT SAM C18 ODL Series HPLC columns designed for fast mass transfer and very high efficiency for the separation of highly hydrophobic molecules. They offer low hydrophobicity as the spacer molecules have much fewer carbon chains. Still, the effective cross-linking with the functional ligands offers adequate protection to the substrate material against aggressive pH conditions. The ODL phase offers unique selectivity compared to other C18 phases, as the higher population of the spacer molecules provides the unique mixed-mode effect for enhanced selectivity.

Customized column configurations are available.

Features of SMT ODL Series SAM C18:
  • Fast mass transfer and very high efficiency for the separation of highly hydrophobic molecules
  • Low hydrophobicity, the spacer molecules have much fewer carbon chains
  • effective cross-linking with the functional ligands offers protection to the substrate material against aggressive pH conditions
  • Unique selectivity compared with other C18 phases
  • Higher population of spacer molecules provides unique mixed-mode effect for the selectivity
  • Particle sizes of 3, 5 and 10 µm are stock, others available
  • Pore sizes of 100, 120 and 300Å are stock, others available

SMT SAM C18 ODL-5-100-15 Column compared with SMT OD-5-100-15

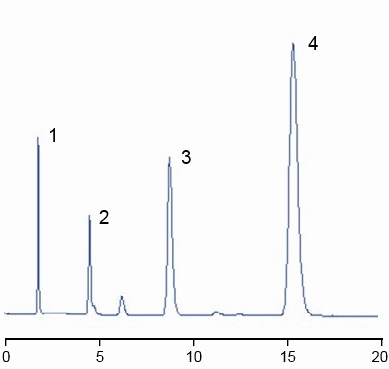

C18 ODL Hydrophobic compounds
Column: ODL-5-100-15
Solutes: 1 = Tebuthiuron
2 = Simazine
3 = Altrazine
4 = Propizine
Eluent: ACN: Water 70:30 (v:v)
Flow: 1.0 mL/min
Detector: UV; 254nm
Temp: 30° C
Remarks:

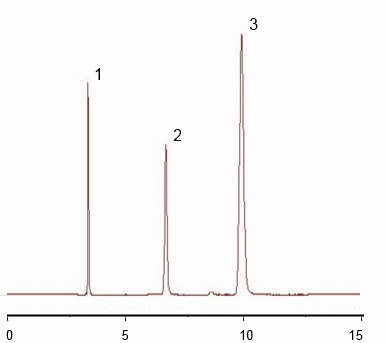

C18 OD Hydrophobic compounds
Column: OD-5-100-154
Solutes: 1 = Tebuthiuron
2 = Simazine
3 = Altrazine
4 = Propizine
Eluent: ACN: Water 70:30 (v:v)
Flow: 1.0 mL/min
Detector: UV; 254nm
Temp: 30° C
Remarks:


Specifications (Click here):  Columns, SMT ODL Series SAM C18 HPLC

NumberDescriptionPrice $
ODL-3-100-02 SMT SAM-C18 ODL Column, 3 µm, 100Å, 20 mm L x 4.6 mm I.D565.65
ODL-3-100-03 SMT SAM-C18 ODL Column, 3 µm, 100Å, 30 mm L x 4.6 mm I.D592.65
ODL-3-100-05 SMT SAM-C18 ODL Column, 3 µm, 100Å, 50 mm L x 4.6 mm I.D619.65
ODL-3-100-7.5 SMT SAM-C18 ODL Column, 3 µm, 100Å, 75 mm L x 4.6 mm I.D646.65
ODL-3-100-10 SMT SAM-C18 ODL Column, 3 µm, 100Å, 100 mm L x 4.6 mm I.D673.65
ODL-3-100-15 SMT SAM-C18 ODL Column, 3 µm, 100Å, 150 mm L x 4.6 mm I.D700.65
ODL-3-100-25 SMT SAM-C18 ODL Column, 3 µm, 100Å, 150 mm L x 4.6 mm I.D781.65
ODL-3-120-02 SMT SAM-C18 ODL Column, 3 µm, 120Å, 20 mm L x 4.6 mm I.D565.65
ODL-3-120-03 SMT SAM-C18 ODL Column, 3 µm, 120Å, 30 mm L x 4.6 mm I.D592.65
ODL-3-120-05 SMT SAM-C18 ODL Column, 3 µm, 120Å, 50 mm L x 4.6 mm I.D619.65
ODL-3-120-7.5 SMT SAM-C18 ODL Column, 3 µm, 120Å, 75 mm L x 4.6 mm I.D646.65
ODL-3-120-10 SMT SAM-C18 ODL Column, 3 µm, 120Å, 100 mm L x 4.6 mm I.D673.65
ODL-3-120-15 SMT SAM-C18 ODL Column, 3 µm, 120Å, 150 mm L x 4.6 mm I.D700.65
ODL-3-120-25 SMT SAM-C18 ODL Column, 3 µm, 120Å, 150 mm L x 4.6 mm I.D781.65
ODL-5-100-02 SMT SAM-C18 ODL Column, 5 µm, 100Å, 20 mm L x 4.6 mm I.D498.15
ODL-5-100-03 SMT SAM-C18 ODL Column, 5 µm, 100Å, 30 mm L x 4.6 mm I.D511.65
ODL-5-100-05 SMT SAM-C18 ODL Column, 5 µm, 100Å, 50 mm L x 4.6 mm I.D525.15
ODL-5-100-7.5 SMT SAM-C18 ODL Column, 5 µm, 100Å, 75 mm L x 4.6 mm I.D565.65
ODL-5-100-10 SMT SAM-C18 ODL Column, 5 µm, 100Å, 100 mm L x 4.6 mm I.D592.65
ODL-5-100-15 SMT SAM-C18 ODL Column, 5 µm, 100Å, 150 mm L x 4.6 mm I.D660.15
ODL-5-100-25 SMT SAM-C18 ODL Column, 5 µm, 100Å, 250 mm L x 4.6 mm I.D700.65
ODL-5-100-30 SMT SAM-C18 ODL Column, 5 µm, 100Å, 300 mm L x 4.6 mm I.D795.15
ODL-5-300-02 SMT SAM-C18 ODL Column, 5 µm, 300Å, 20 mm L x 4.6 mm I.D498.15
ODL-5-300-03 SMT SAM-C18 ODL Column, 5 µm, 300Å, 30 mm L x 4.6 mm I.D511.65
ODL-5-300-05 SMT SAM-C18 ODL Column, 5 µm, 300Å, 50 mm L x 4.6 mm I.D525.15
ODL-5-300-7.5 SMT SAM-C18 ODL Column, 5 µm, 300Å, 75 mm L x 4.6 mm I.D565.65
ODL-5-300-10 SMT SAM-C18 ODL Column, 5 µm, 300Å, 100 mm L x 4.6 mm I.D592.65
ODL-5-300-15 SMT SAM-C18 ODL Column, 5 µm, 300Å, 150 mm L x 4.6 mm I.D660.15
ODL-5-300-25 SMT SAM-C18 ODL Column, 5 µm, 300Å, 250 mm L x 4.6 mm I.D700.65
ODL-5-300-30 SMT SAM-C18 ODL Column, 5 µm, 300Å, 300 mm L x 4.6 mm I.D795.15
ODL-10-100-5 SMT SAM-C18 ODL Column, 10 µm, 100Å, 50 mm L x 4.6 mm I.D552.15
ODL-10-100-7.5 SMT SAM-C18 ODL Column, 10 µm, 100Å, 75 mm L x 4.6 mm I.D592.65
ODL-10-100-10 SMT SAM-C18 ODL Column, 10 µm, 100Å, 100 mm I.D. x 4.6 mm I.D619.65
ODL-10-100-15 SMT SAM-C18 ODL Column, 10 µm, 100Å, 150 mm I.D. x 4.6 mm I.D646.65
ODL-10-100-25 SMT SAM-C18 ODL Column, 10 µm, 100Å, 250 mm I.D. x 4.6 mm I.D687.15
ODL-10-100-30 SMT SAM-C18 ODL Column, 10 µm, 100Å, 300 mm I.D. x 4.6 mm I.D781.65
ODL-10-300-15 SMT SAM-C18 ODL Column, 10 µm, 300Å, 150 mm I.D. x 4.6 mm I.D646.65
ODL-10-300-25 SMT SAM-C18 ODL Column, 10 µm, 300Å, 250 mm I.D. x 4.6 mm I.D687.15
ODL-10-300-30 SMT SAM-C18 ODL Column, 10 µm, 300Å, 300 mm I.D. x 4.6 mm I.D781.65
