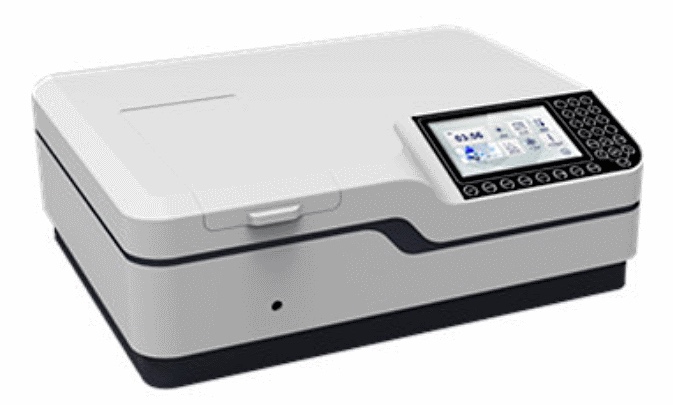

Spectrophotometers, UV-Visible Double Beam K-Series Color Screen
Overview
The K-Series Double Beam UV-Vis spectrophotometers are designed to meet high requirements for precision measurement in research and production in organic chemistry, biochemistry, medical testing, food testing, environmental protection, water testing industry and other such areas. The latest ARM system and long optical system ensure high accuracy and good stability of the instruments. They are the best choice for high quality spectrophotometers with outstanding performance.
Features of the K800, K8001 and K8001S Spectrophotometers:
7” Color LCD and Windows Graphic Interface
Powerful functions such as Photometric Measurement, Quantitative Measurement, Kinetics, Spectrum scan, DNA\Protein test and Multi-Wavelength Test
In-house massive memory is capable of saving up to 1024M for test data and working curves
Supports USB and SD card storage
The USB port can be used for data transfer, which is easily exported to Excel for further processing, analysis and storage
Socket type deuterium and tungsten lamp makes lamp switching without optics debugging easy
Large sample chamber allows the easy interface of optional accessories
Extensive accessories are optionally available, such as auto 8-cell holder, peltier/sipper system, reflection accessories or 21 CFR compliant software
Specifications (Click here):
Spectrophotometers, UV-Visible Double Beam K-Series Color Screen
Specifications
Model:
K8000
K8001
K8001S
Optical System:
Double Beam, Grating 1200 lines/mm
Double Beam, Grating 1200 lines/mm
Double Beam, Grating 1200 lines/mm
Spectral Bandwidth: (nm)
2
1
0.5,1,2,4,7 (User Selectable)
Wavelength Range: (nm)
190 - 1100
190 - 1100
190 - 1100
Wavelength Accuracy: (nm)
± 0.3
± 0.3
± 0.3
Wavelength Repeatability: (nm)
≤ 0.1
≤ 0.1
≤ 0.1
Photometric Accuracy: (%T, A, A
0.2 (0~100), ±0.002 (0-0.5), ±0.004 (0.5-1)
0.2 (0~100), ±0.002 (0-0.5), ±0.004 (0.5-1)
0.2 (0~100), ±0.002 (0-0.5), ±0.004 (0.5-1)
Photometric Repeatability: (%T, A, A)
≤0.15 (0-100), 0.001 (0-0.5), 0.002 (0.5-1)
≤0.15 (0-100), 0.001 (0-0.5), 0.002 (0.5-1)
≤0.15 (0-100), 0.001 (0-0.5), 0.002 (0.5-1)
Photometric Range: (%T, A, C, F)
0-200, -3~3, 0-9999, 0-9999
0-200, -3~3, 0-9999, 0-9999
0-200, -3~3, 0-9999, 0-9999
Stray Light at 220nm, at 360nm: (%T)
0.03
0.03
0.03
Stability at 500nm: (A/h)
± 0.0003
± 0.0003
± 0.0003
Noise at 500nm: (A)
0.0005
0.0005
0.0005
Baseline Flatness: (A)
± 0.0010
± 0.0010
± 0.0010
Work Mode:
T, A, C, E
T, A, C, E
T, A, C, E
Scanning Speed:
Fast, Mid, Slow
Fast, Mid, Slow
Fast, Mid, Slow
Wavelength Setting:
Auto
Auto
Auto
Keyboard:
Membrane Keypad
Membrane Keypad
Membrane Keypad
Display:
7” Color LCD
7” Color LCD
7” Color LCD
Light Source:
Deuterium, Tungsten
Deuterium, Tungsten
Deuterium, Tungsten
Detector:
Silicone Photodiode
Silicone Photodiode
Silicone Photodiode
Output Port:
USB Port, RS232
USB Port, RS232
USB Port, RS232
Power: (V, Hz)
110/220, 60
110/220, 60
110/220, 60
Shipping Dimensions: (mm)
810 x 660 x 390
810 x 660 x 390
880 x 690 x 520
Gross Weight: (kg)
33
33
47
Net Weight: (kg)
20
20
28
Dimensions: (mm)
590 x 475 x 250
590 x 475 x 250
760 x 560 x 280
Standard Accessories:
4 x 10mm Glass Cuvettes, 2 x 10mm Quartz Cuvettes, Power Cord and Operations Manual and PC Software
4 x 10mm Glass Cuvettes, 2 x 10mm Quartz Cuvettes, Power Cord and Operations Manual and PC Software
4 x 10mm Glass Cuvettes, 2 x 10mm Quartz Cuvettes, Power Cord and Operations Manual and PC Software
